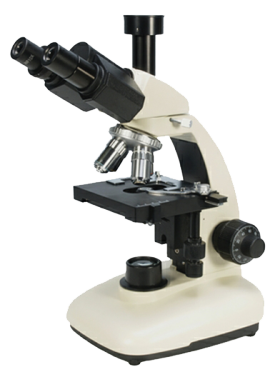

SP100 Compound Microscope

  • Available in both trinocular and monocular versions
  • x40 to x1000 magnification
  • LED illumination
Price: £395.00 - £699.00
226249 | Availability: Usually dispatched within 4 days Details
NHBS Price: £699.00 inc VAT $943/€792 approx
226251 | Availability: Usually dispatched within 4 days Details
NHBS Price: £395.00 inc VAT $533/€447 approx

About this product

The SP100 Compound Microscope combines an elegant design with excellent technical specifications. It has a four position objective turret with x4, x10, x40 and x100 (oil) semi plan parfocal DIN standard objectives. Eyepieces are widefield plan x10 providing magnification of x40 to x1000. The microscope head will rotate through 360° and the trinocular version has full dioptric and interocular adjustment.

The SP100 has a large mechanical stage measuring 135 x 125mm which has drop down coaxial controls and double vernier scales. The coaxial course and fine focus system includes a tension adjustment and variable safety stop for protection of slides. The substage condenser is controlled by a rack and pinion mechanism and has centering adjusters and an iris diaphragm. Illumination is provided by LEDs which light the sample effectively without producing any heat.

Available in a trinocular or monocular version.

* Dimensions: 410 x 190 x 240mm
* Weight: 5.5kg



Objective Specifications:

ObjectiveWorking DistanceNumerical Aperture
