Equipment  Microscopes and Hand Lenses  Stereo Microscopes

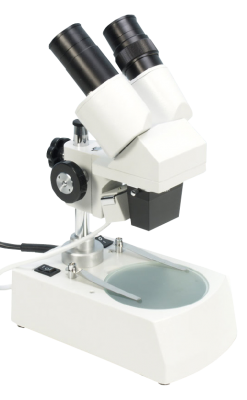

MX3 Stereo Microscope

#186337 | Availability: In stock
NHBS Price: £199.00 inc VAT $243/€222 approx

About this product

The MX3 is a versatile stereo microscope suitable for a variety of natural history applications. As opposed to the MX1 which only features incident illumination, the MX3 features both incident and transmitted illumination. The transmitted illumination is housed in a raised base whilst the incident lamp is fitted behind the objectives and shines directly on to the specimen area. The lighting is controlled by a rocker switch that allows either the incident or transmitted options to be used alternatively.

The MX3 features binocular eyetubes inclined at 45 degrees for comfortable use. The binocular heads have full dioptric adjustment with independent focusing and the interocular distance can be varied to suit the individual. With x10 widefield eyepieces and an objective pair of x2, the MX3 has an overall magnification of x20. This can be increased to x40 with additional eyepieces. Coarse focus is by pillar adjustment with a robust rack and pinion system (incorporating a tension clutch) providing fine movement.

Rubber eyecups and a dust cover are provided as standard. There is also a reversible black/white stage plate with stage clips. The MX3 is suitable for digital photomicrography.

x20 eyepieces (to convert microscope to x40)
Hard carrying case
Spare bulb



* Magnification: x20 (with option to increase to x40 with additional eyepieces)
* Working distance at x20: 57mm
* Light Source: mains-powered incident and transmitted light
* Dimensions: 290 x 120 x 190mm
* Weight: 2.5kg
* Suitable for digital photomicrography



Recommended Accessories

x20 Eyepieces MX1 and MX3 Stereo Microscopes

Pair of x20 eyepieces

NHBS Price: £49.99 inc VAT $61/€56 approx

Spare Bulb for MX3 Microscope

Spare bulb

NHBS Price: £3.95 inc VAT $5/€4 approx


Carrying case for MX1 and MX3 Microscopes

Keep your microscope safe during storage and transport with this hard carrying case

NHBS Price: £45.95 inc VAT $56/€51 approx
