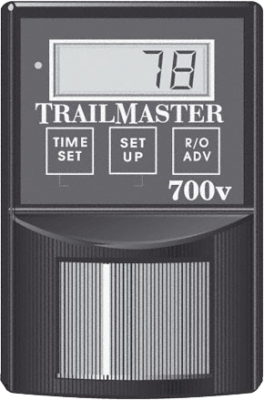

TrailMaster TM700v Passive Infrared Video Trail Monitor

Connect this trail monitor to a video camera to collect wildlife footage


193414 | Availability: Usually dispatched within 2-4 weeks Details
NHBS Price: £898.99 inc VAT $1172/€1023 approx

About this product

This passive-system trail monitor intelligently controls and monitors a video camera, as well as recording events just like other TrailMaster passive infrared systems.The TrailMaster TM700v is a passive infrared receiver which detects the combination of body heat and motion in the area it is monitoring. The area of sensitivity forms a wedge radiating outward in front of the monitor which is 30.5m (100 feet) deep and spreads 150 degrees wide. Any warm-blooded animal which moves within this wedge will register as an event with a date- and timestamp. The unit will store one event per minute as long as the animal is moving within the area. In addition to storing event information, the monitor can be set to control a video camera. When an animal enters the area, the TrailMaster turns the video camera on and the camera stays on as long as motion and heat are detected, then turns off after the last detection. With a 2-hour tape, the unit can remain in the field for weeks at a time. At the same time, the TM700v records and stores the dates and times that animals are in the area. The TM700v passive infrared monitor can store over 1000 animal movement events by date and time.

The TM700v can be used with any video camera that adheres to the"Lan-C" remote control protocol (e.g. most SONY Handycams) and will require the TM25V video cable (supplied) to connect the unit to the video camera. It is weatherproof and the operating temperature range is -40°C to 55°C.







Dimensions: Height: 121mm, Width: 83mm, Depth: 83mm
Weight: 340g (without batteries)
Operating range: 30.5 metres (100 feet)
Power: 4 x C cell battery
Battery life: 3 - 6 months
Operating temperature range: -40°C to 55°C (-40°F to 130°F)
Number of events recorded: 1000+

Supplied with: TM25 video camera cable, nylon strap for attaching to tree or post
