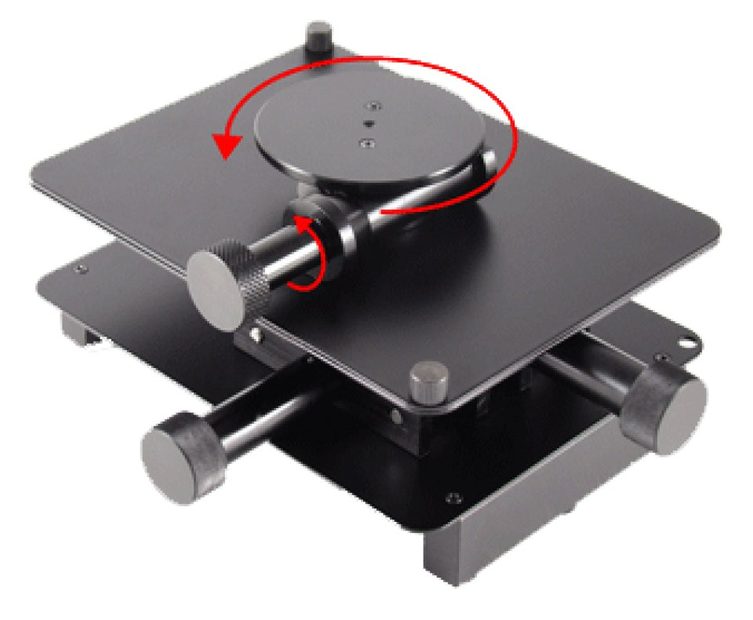

The MS15X Dino-Lite X-Y Base with Removable Rotating Table provides an excellent solution for applications that require fine X-Y, or rotational control, over the specimen being examined. Used without the rotating table the MS15X provides a 137mm x 105mm platform with 33mm of fine control in both the X and Y directions. Used with the rotating table the MS15X provides a 55mm diameter platform with 360 degree of rotation while still offering fine control over the X and Y directions.
The MS15X can be used free standing or (using the supplied brackets) connected to the base of either the MS35B or MS36B pole stands to offer a truly professional and flexible inspection support solution for the Dino-Lite range.
* X-Y Platform with fine adjustment
* Removable platform with rotating base
* Up to 33mm of X-travel
* Up to 33mm of Y-travel
* Rotating table (removable) provides 360 degree rotation
* MS15X X-Y platform
* MS15X Removable rotating table
* Fixing brackets to allow connection to MS35B or MS36B pole stand base
Features & Technical Specifications:
* Platform dimensions (rotating table removed): 137mm x 105mm
* Platform height (rotating table removed): 55mm
* Rotating table diameter: 55mm
* Rotating table hieght (fitted to platform): 7cm
* Maximum X travel: 33mm
* Maximum Y travel: 33mm
* Weight: 1kg
