Datenerfassung und Monitoring  Microscopes & Hand Lenses  Microscope Cameras

Dino-Eye Eyepiece Cameras

Manufacturer: Dino-Lite
  • Turn your conventional microscope into a digital microscope
  • Connect to your computer via USB
  • Includes DinoCapture software
  • Calibrated measurement features
  • 2 year warranty
Dino-Eye Eyepiece Cameras
Click to have a closer look
Select product
  • Dino-Eye Eyepiece Cameras AM7025X (5MP) In stock
    £772.46
    #244885
  • Dino-Eye Eyepiece Cameras AM4025X (1.3MP) Not in stock: Usually dispatched within 6 days
    £363.75
    #258181
Selected product: £772.46
About this product Specification Customer reviews Related products
Images Additional images
Dino-Eye Eyepiece CamerasDino-Eye Eyepiece CamerasDino-Eye Eyepiece CamerasDino-Eye Eyepiece Cameras

About this product

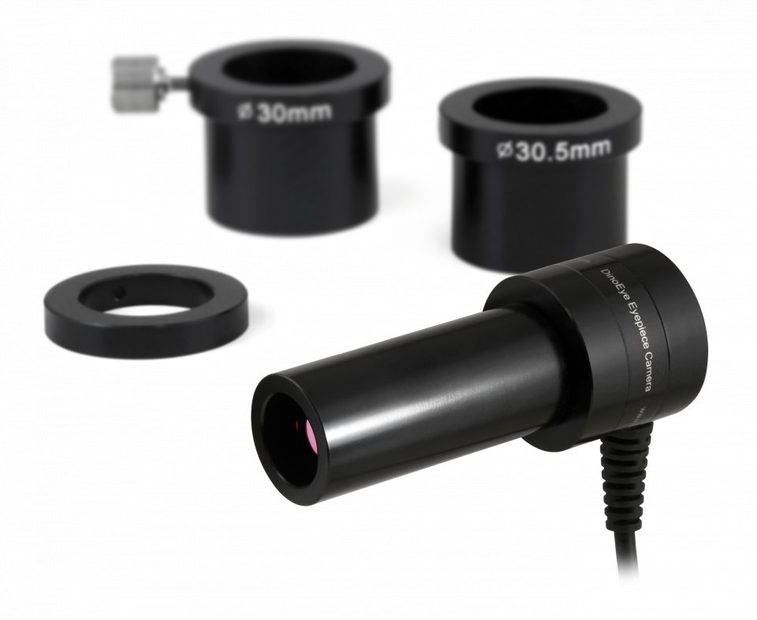

With the Dino-Eye eyepiece cameras you can turn your conventional microscope into a digital microscope. You can replace the eyepiece of your microscope with the Dino-Eye eyepiece if the eyepiece diameter is 23mm (the diameter of the camera), 30mm, or 30.5mm (achieved with included adapters). Alterniatively, the Dino-Eye can be attached to the C mount of a trinocular tube. It is then connected via USB to your computer. With the included proprietary DinoCapture software you have a professional software environment for image or video processing, including calibrated measurement features.

Two models are available:

AM4025X - Can be used either on the microscope eyepiece or on the trinocular tube using a C mount and has a resolution of up to 1.3MP (1280 x 1024) and a frame rate of 30fps.

AM7025X Used likewise, with a resolution of 5 Megapixel (2592 x 1944) and maximum frame rate of 30fps.



Specification

AM4025X

USB interface: USB 2.0
Resolution: 1.3 Megapixel (1280x1024)
Frame rate: Up to 30fps
Measurement functionality: Yes
Calibration: Yes
Built in magnification: Yes
Lens type: Glass with anti reflective coating
Microtouch sensor: No
Fits ocular lenses: 23mm, 30mm, 30.5mm
Dimensions: Height 80mm, Diameter 32mm
Weight: 80g
Cable length: 1.8m
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.4 and up
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Housing material: Metal body
Package contents: DinoEye eyepiece camera, Software CD, Calibration Target, User Manual
Warranty: 2 years European warranty
Regulatory approval: CE, FCC, ROHS

AM7025X

USB interface: USB2.0
Resolution: 5 Megapixel (2592 x 1944)
Frame rate: 30fps
Measurement functionality: Yes
Calibration: Yes
Built in magnification: x20
Lens type: Glass with anti reflective coating
Microtouch sensor: No
Fits ocular lenses: 23mm, 30mm, 30.5mm
Fits c-mount: Yes
Dimensions: Height 80mm, Diameter 32mm
Weight: 117g
Cable length: 1.8m
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.4 and up
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Housing material: Metal body
Package contents: DinoEye eyepiece camera, Carry Pouch, Software CD, Calibration Target, User Manual
Warranty: 2 years European warranty
Regulatory approval: CE, FCC, ROHS

Customer Reviews

Manufacturer: Dino-Lite
  • Turn your conventional microscope into a digital microscope
  • Connect to your computer via USB
  • Includes DinoCapture software
  • Calibrated measurement features
  • 2 year warranty
