Hand Penetrometer for Top Layers

About this product

The hand penetrometer for top layers is a versatile tool designed to measure the penetration resistance of soil's upper layers. Due to its compact design, it allows for both vertical and horizontal measurements.

Ideal for assessing soil density, this hand penetrometer measures resistance using a cone and a compression spring. The principle of the hand penetrometer is based on measuring the highest penetration resistance of a cone over a distance of about 10 cm. The appropriate cone and spring combination is chosen based on anticipated resistance levels. If the expected penetration resistance is high, a cone with a small surface is selected, and a compression spring with a large maximum force is selected, and vice versa.

Applications:

• Soil profile description and classification.
• Evaluating top layer density.
• Conducting horizontal measurements.

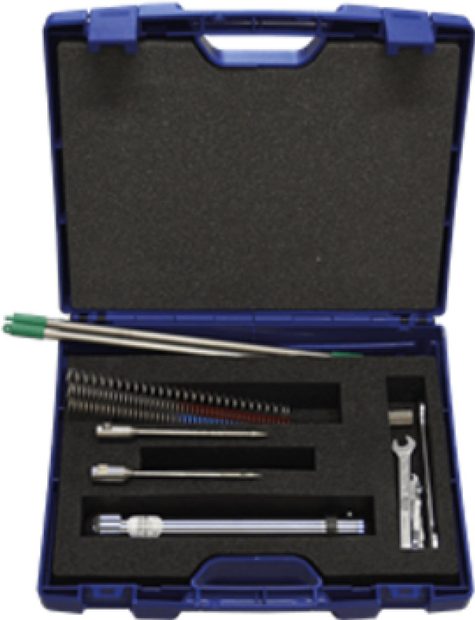

Contents

• Measuring device
• Extension rods
• Sounding rods
• Various cones
• Compression springs
• Tools
• Plastic case

Specification

Angle of cone: 30 °
Cone surface range: 0.25, 0.5 cm²
Connection: Screw thread
Maximum force: 1500 @ 0,25 cm² kPa
Maximum measuring depth: 60 cm
Measured parameters: Penetration resistance
Measuring accuracy: < +/- 8%
Measuring range: 0-6000 kPa
Product material: Stainless steel, iron, other material
Reading accuracy: 1%
Registration type: Manual
Package size: 41 x 30 x 9 cm
Weight: 2.68 kg
