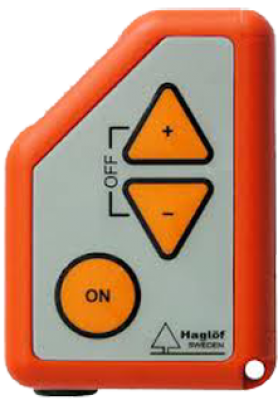

Haglöf EC II Electronic Clinometer

Easy operation, accurate results


#206260 | Availability: In stock
Clearance price: £275.00 inc VAT £295.00 (Save £20.00) $354 / €316 approx

About this product

The Haglöf EC II allows you to precisely measure both inclination and height quickly and easily - perfect for accurate measurement of slopes or the height of landscape features such as trees. The simple three button design is simple to use  - set the function and log heights/angles by pressing the "on" button a defined number of times. Distance from your chosen target is entered using the up and down arrows. The EC II does not require any calibration or maintenance and, powered by a single battery, will last for many months. Takes one AA battery.

Inclination is provided in degrees and height in metres.

Please note: The EC II will not measure distances. A tape measure or other device must be used to determine the correct distance from the eye to the base of the chosen target. (In the absence of new data the EC II will use the last distance input into the unit).



* Size: 20 x 63 x 44mm (0.8 x 2.5 x 1.7")
* Weight: 50g/1.8oz (including battery)
* Battery: 1 x AA. Warning when low.
* Temperature: Min -15°, Max 45°C / Min 5°F, Max 113°F
* Display: LCD, backlit
* Consumption: 15mW
* Distance: 0-999m
* Height: 0-999m
* Height resolution: 0.1m (<100m), 1m (>100m)
* Angle: -55° to +85°
* Angle accuracy: ± 0.2°
* Angle resolution: 0.1°
