NHBS Equipment Specialist Johnny Mitchell, explains the ins and outs of acoustic recording in the field and highlights key equipment items to get you started.
In recent years advances in portable recording equipment have led to an increase in the exploration of listening as a method of engaging with as well as studying the natural world. This blog looks at a number of different equipment options across a range of budgets and objectives while briefly outlining some of the main technical considerations.
Equipment and Technical considerations
For those interested in having a go at sound recording a handheld recorder is a great starting point and Tascam have some great entry level options such as the DR-05 and DR-40 both of which allow you to record uncompressed audio. The advantage of this method is that the recorders are highly portable and require very little set up – invaluable if you’re out and need something that can be used at a moments notice.
The built-in microphones will not compete with a professional external microphone and if recording becomes more than a passing interest dedicated microphones can be a great way to optimise your setup for specific recordings. We cover a few of the microphones in our range below with a quick guide to their application. The right recorder should have a logical menu system and inputs that allow for a suitable upgrade path via the connection of external microphones.

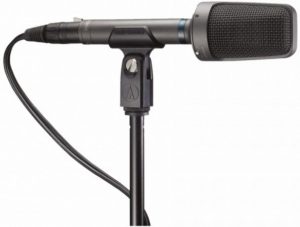

I personally enjoy the use of stereo microphones for capturing the ambience of entire soundscapes. The Rode NT4 Stereo Microphone or Audio Technica AT8022 X/Y Stereo Microphone are both great options for this, which contain two microphone capsules in a portable housing. Both models are examples of condenser microphones which will require external power to function. To provide this, look for a recorder that has XLR inputs and an option to turn on phantom power; the Tascam Dr-40 would be a suitable choice in this instance.
There are also several options designed exclusively for use in the field. A common type makes use of a parabolic dish, effectively acting as a kind of audio zoom lens making them useful for focusing in on a particular sound-source. Some of these systems require a different type of power known as plug-in power so you’ll need a recorder able to supply this via a 3.5mm mic/line input as found on the Tascam DR-05.
The Hi-sound and Telinga PRO-X systems are good examples of plug-in powered parabolic systems. If your recorder does not have plug-in power, you can use an XLR to PiP adaptor. This connects to the XLR outputs on your recorder and converts the phantom power produced by the recorder to plug-in power which can run the microphone.
Before heading out make sure you have adequate wind protection for your microphones, as even a slight breeze can ruin a recording if it’s not what you’re after! – Parabolic windshields – Tascam DR-05 windshield .
Finally, we feature static recording devices such as the SM4 Acoustic from Wildlife Acoustics and the Bar-LT from Frontier Labs. These waterproof units feature built in omni-directional microphones and can be secured to any suitable surface. The long deployment times and scheduling functions make these ideal for long-term bioacoustic studies.
In the field
To test a small cross section of equipment, I headed to a small forest within the Dartmoor National Park to capture the distinctive call of the Common Cuckoo, armed with a Tascam DR-40, XLR to PiP adaptor, Hi-Sound Stereo Parabolic system and a Wildlife Acoustics SM4 Acoustic recorder.
I initially walked a narrow path that cut through a steep section of woodland, at this point the cuckoos could be heard faintly calling from lower down in the valley. Locating a suitable tree easily accessible from the path, I decided to deploy the SM4. The SM4 has been designed to be exceptionally quick to set up straight out of the box and for this field test, I set it to ‘always record’ and secured it in place with a Python Mini Cable Lock.
Static recorder in place, I then used the Tascam DR-40 whilst walking through the woodlands to capture the changing soundscapes as I moved away from the sound of the river and closer to the open moor.
The DR-40 has a clear front facing screen that is easy to read in all light levels, pressing the record button once arms the unit allowing you to see and hear the recording levels. A good pair of headphones is recommended for use with this unit as they are susceptible to a certain amount of handling noise.
I then connected the parabolic to the Hi-Sound parabolic to the Tascam using the XLR to PiP adapter.
Dropping off the path I headed towards the middle of the wood where the Cuckoos could be heard calling in the distance. The high directionality of the parabolic microphone was excellent allowing me to pick out individuals among the woodland birds present.
Late in the evening whilst preparing to pack up I was rewarded with a fantastic display as several cuckoos alighted on the trees around me, a recording of which is included below.
I highly recommend getting out and exploring natural soundscapes in your local area, especially at this time of year. As with any piece of equipment it takes a few trips to really get a feel of what they’re capable of, but any one of these items could become a reliable piece of gear for your sonic explorations.
To view our full range of sound recording equipment please visit www.nhbs.com. If you have any questions on our sound recording range or would like some advice on the best set-up for your project please contact us via email at firstname.lastname@example.org or phone on 01803 865913.
