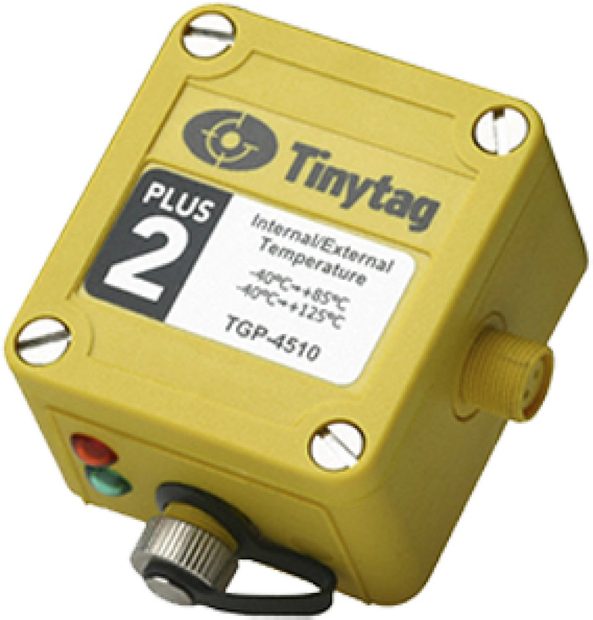

TGP-4510 - Tinytag Plus 2 Datalogger

About this product

Small, powerful, easy to use and offering many advanced features, loggers from the Tinytag Plus range are the ideal choice for most professional logging applications. The large memory, two programmable alarms, a delayed start time and the ability to offload data whilst still logging all come as standard. The rugged IP68 casing is environmentally sealed, submersible to a depth of 15 m and resistant to most chemicals making this logger suitable for use under most conditions. Ideal for external environmental monitoring.

This is a dual channel device logging temperatures from an internally mounted sensor and an external probe (not included).

To use this logger you will need a PC, a cable, software, and a sensor probe. Please see the accessories tab for probe options.

Specification

Internally mounted Temperature Sensor Details:

Range: -25° to +85°C / -40° to +185°F

Sensor Type: 10K NTC Thermistor (encapsulated)

Sensor Location: Internally mounted

Response Time: 25 mins to 95% FSD in moving air

Sensor Accuracy: Between 0° & 40°C: +/- 0.5°C (conservative figure, more details on request)

Resolution: 0.01°C or better

External Temperature Probe Details:

Range: -40° to +125°C / -40° to +257°F

Sensor Type: 10K NTC Thermistor probe

Sensor Location: External probe

Sensor Accuracy: Between 0° & 40°C: +/- 0.5°C (conservative figure, more details on request)

Resolution: 0.02°C or better

Features:

Memory Size: 64k memory chip

No. of Readings: approximately 32,000

Resolution: 16 bit

Trigger Start: Magnetic reed switch

Delayed Start: Relative / Actual up to 45 days

Stop Options: When full / after n readings / never (wrap around)

Reading Types: Actual / Min / Max

Logging Interval: 1 s to 10 days

Offload: When not logging or when logging in minute multiples

Alarms: 2, fully programmable; latchable

Functional Range: -40° to +85°C / -40° to +185°F

IP Rating: IP68 waterproof

Battery Life: Replacement recommended annually

Physical Features:

Case Style: IP68 style

Weight: 110 g

Dimensions of Case: 34 x 59 x 80 mm
