About this product
Designed by researchers, EntoCam is a compact, durable, field-ready automated moth and insect monitoring system designed for high-precision data collection. With its 64 MP Sony Starvis sensor, EntoCam provides consistent, high-resolution imaging in both remote and controlled environments. Featuring an integrated screen with a simple user interface, EntoCam is quick and easy to both deploy and adjust with no extra tools or complex software required. Built for outdoors, the Entocam is housed in an IP66 casing, making it ideal for long-term, remote deployment. The camera can be powered using 8 AA batteries, mains power or an external power source such as a lead acid or lithium-ion 12V battery.
Please note that batteries, SD card and the attractant light " EntoCam Beam" are not included. Please see the accessories to add these to your EntoCam.
Warranty: 1 year
Contents
- 1 x Custom EntoCam Waterproof
- 1 x PVC-Coated Polyester Light-Grey Screen
- 4 x Carbon rods for 45 cm distance lens-screen
- 1 x Tree trunk mounting strap
- 1 x UV LED Hanger
- 1 x 12V M8 to USB-A female cable for UV LED (1 m)
- 1 x 12V Power Adapter with 5.5mm barrel connector (1.2 m)
- 1 x 5.5 mm barrel cable with bare end (1.5 m)
Specification
Camera
- Distance from lens: 42 cm (standard)
- Photo area: 450 x 250 mm
- Photo output formats: JPG

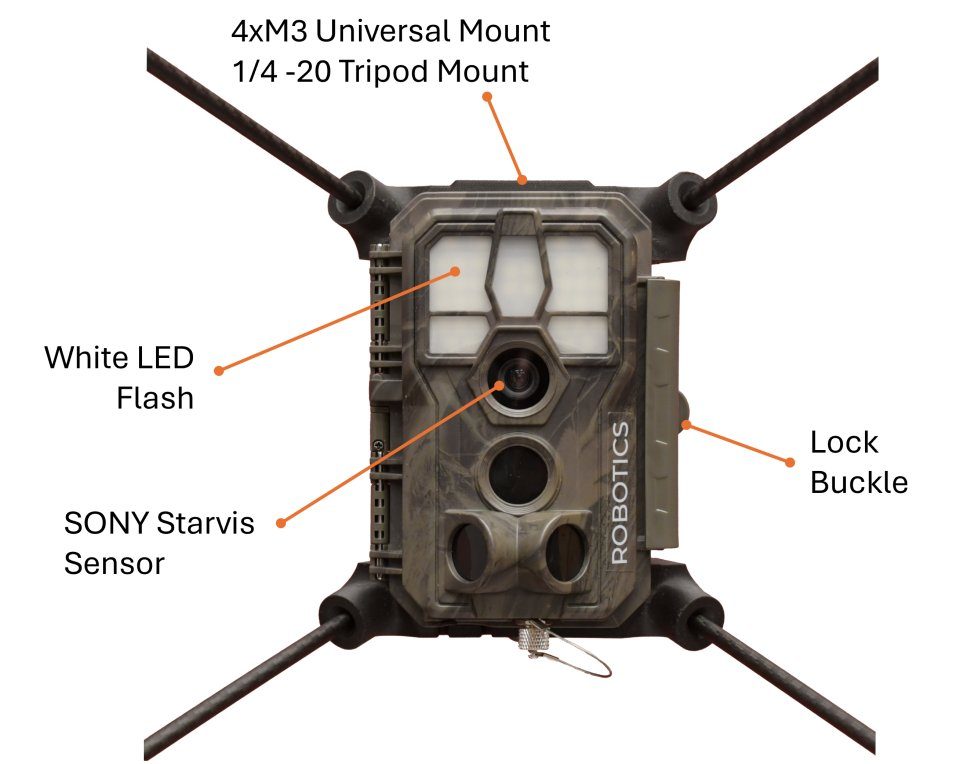

- Camera sensor: SONY Starvis
- Depth of focus: +/- 50 mm
- Flash: 36pcs White flash LEDs, 100 Ft range
- Flash blur: Transmittance 71%, Fog degree 90%
- Photo resolutions: 64 MP, 48 MP, 32MP, 16 MP, 8 MP, 4 MP
- Camera FOV: 70°
- Trigger time: Approx. 0.1~0.5 seconds

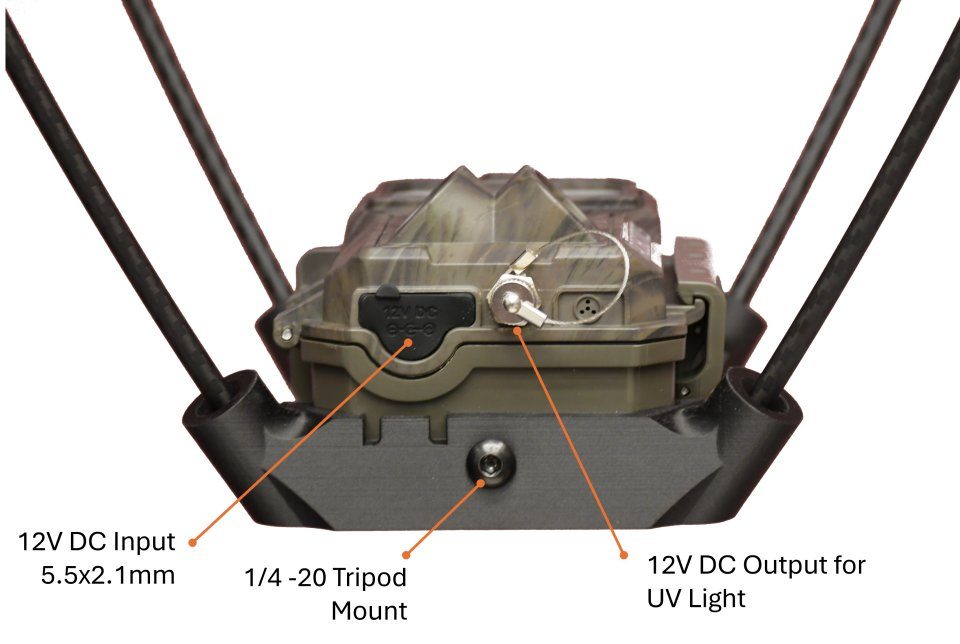

- Input power: 12V DC Max 3A
- Input connector: 5.5 mm Barrel
- Output for UV light: 12V DC Max 3A
- Output connector: M8 Barrel Screw Connector
- Supported memory card: MicroSD card up to 512G(U1 or above)
- Materials: Carbon fiber composites, Carbon fiber reinforced Nylon 3D printing, 18-8 Stainless Steel fasteners
- Operating temp: -20 ºC to 60 ºC
- IP rating: IP66
- Camera weight: 403 g
- Camera dimensions: 162 x 133 x 67 mm
- Total weight (with screen setup): 547 g
Operation modes
- Timelapse: Intervals programmable from 3 seconds to 24h
- Operation hours: 2 programmable periods
- Photo burst: 1-4
- Info strip (optional): Date, Time, Temperature & Moon phase

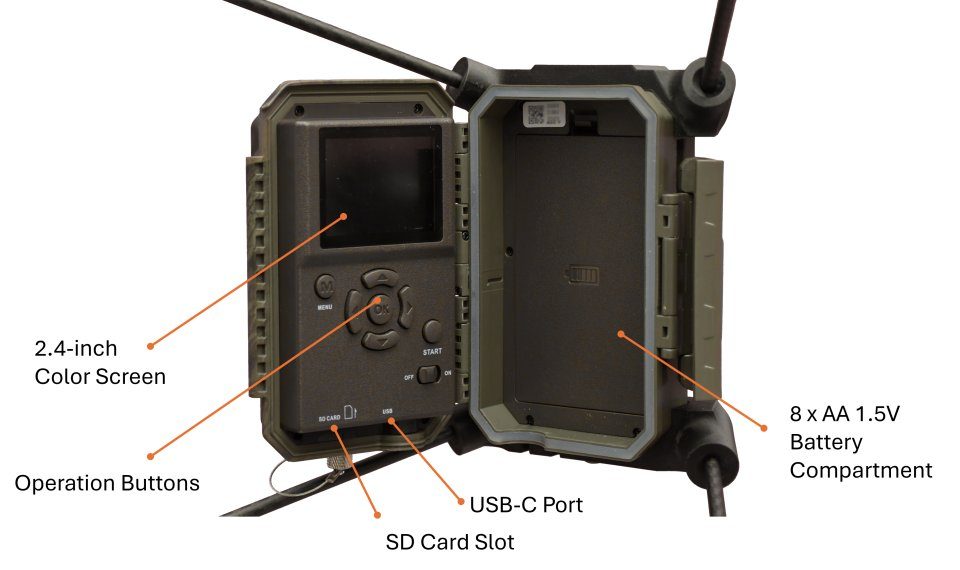

- User interface: Built-in 2.4-inch color screen and operation buttons
Screen kit
- Fabric: PVC-Coated Polyester
- Tubes: Carbon fiber
- Dimensions: 520 x 320 mm
- Weight:144 g
