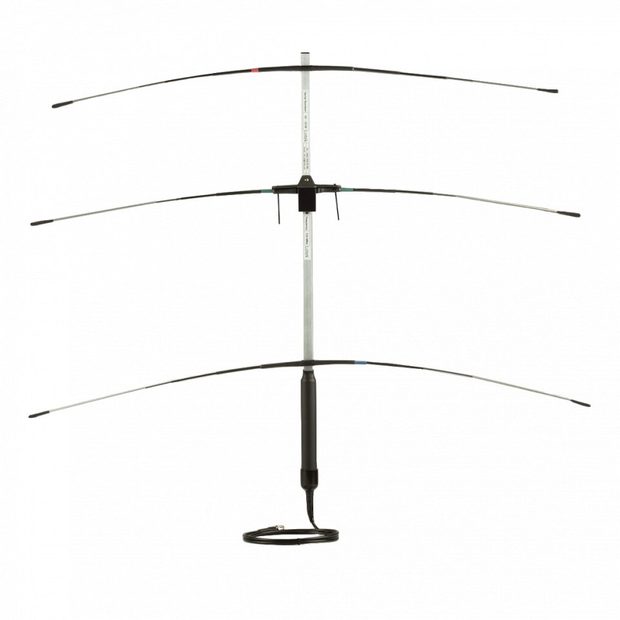

Flexible and lightweight 3-element VHF yagi antenna. The LITEFLEX is designed to be handheld and has flexible elements that fold on impact, automatically springing back into position afterwards.
Available in two frequency options: the 150MHz option covers frequencies from 148 - 152MHz (suitable for most European countries) and the 173MHz option covers frequencies from 171 - 175MHz (suitable for UK tracking). Includes a 1.5m cable with BNC connector. The cable connects to the boom using a TNC connector, allowing it to be replaced if required. A standard camera mounting screw on the boom allows a telescopic pole or pistol grip to be connected (not included).
Please note that this antenna is shipped disassembled to reduce packaging. Full instructions are included and elements are colour marked for easy assembly.
* LITEFLEX Yagi Assembly Instructions
* Dimensions: 760mm length x 1010mm width
* Weight (including cable): 380g
* Cable length: 150cm
* Connector: BNC
* Bandwidth: ± 2MHz
* Gain: 6dB
* Beamwidth (3dB): 80˚
* Back-to-front ratio: 18dB
* Impedance (nominal): 50 ohms
