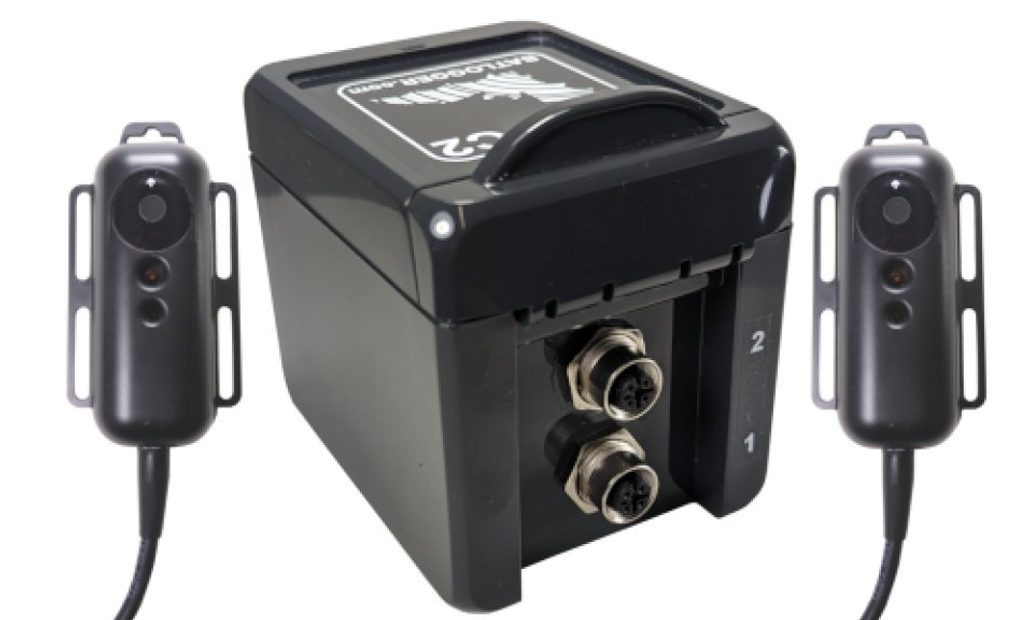

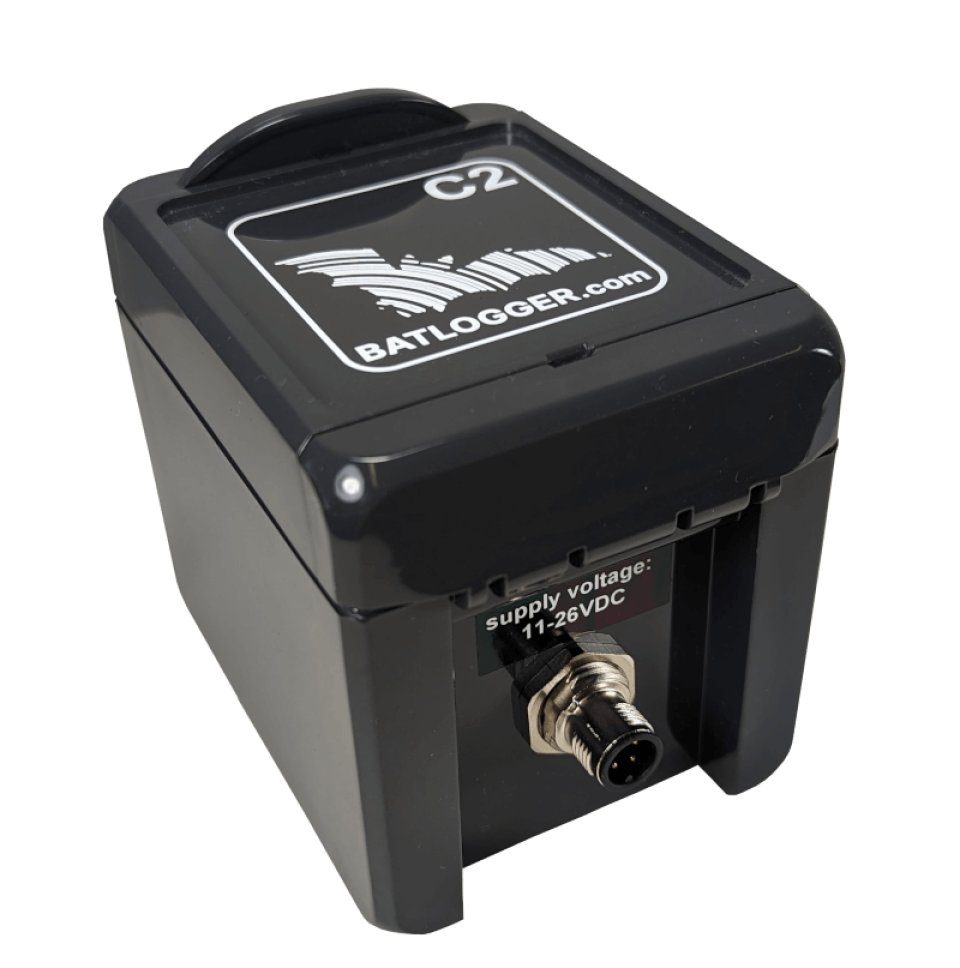

Elekon Batlogger C2 Bat Detector

About this product

The Batlogger C2 from Elekon is a passive full-spectrum bat detector featuring two microphone channels. Designed for long-term monitoring, it features a built-in 20.4Ah battery capable of recording for 330 hours, with external power options also compatible for even longer durations. The C2 works alongside the BATLOGGER Control App, available on Android® or iOS® devices with Bluetooth® Low Energy, for quick and easy setup and configuration.

Featuring an integrated SIM card, the C2 offers remote status updates from the field with Elekon's IOT status paid subscription,more details can be found here. The device will send updates directly to your BATLOGGER Connect account over LTE-M/NB-IOT. This service allows you to remotely check your SD-card level, battery level and set microphone tests and alarms. The BATLOGGER Connect service is available in the European countries shown on the map above.

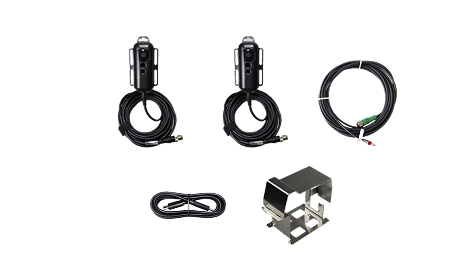

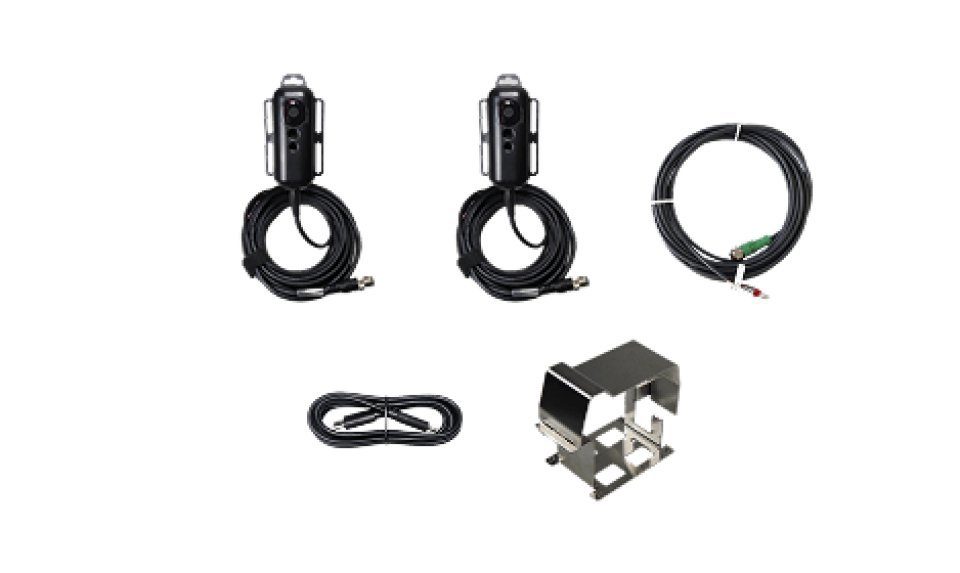

Contents

• Batlogger C2
• 256GB microSD card
• 2 x  5m Microphone ultra cable
• Adapter cable for 12V external power supply
• USB-C to USB-C cable
• Security set (padlock not included)
• Quick start guide

Specification

Audio/Recording

• Acoustic signal processing: Real time 16bit-full spectrum
• Sampling rate: 312.5kHz, 384kHz,500kHz
• Type of microphone: SiSonic
• Number of microphones: 2
• Sensitivity range:10–192kHz
• Trigger function: Yes, adjustable
• Scheduler: Yes, adjustable, with sunset/sunrise times
• Storage: MicroSD card, 256GB included

Operation

• Display: No
• Interface: BATLOGGER Control App
• GPS: No, location set from App
• Sensors: Temperature, humidity, microphone test
• Automatic microphone test: Yes
• Connectivity: Batlogger Connect (IoT)

Casing

• Size: 113 x 101 x 80 mm (W x L x D)
• Weight: 677g
• Environmental protection: IP66

Power

• Power supply: Internal 3.6V, 20400mAh battery, USB-C charging, external solar panel (optional), 12V battery(optional)
• Operating time: 210h with 2 microphones, 330h with 1 microphone
