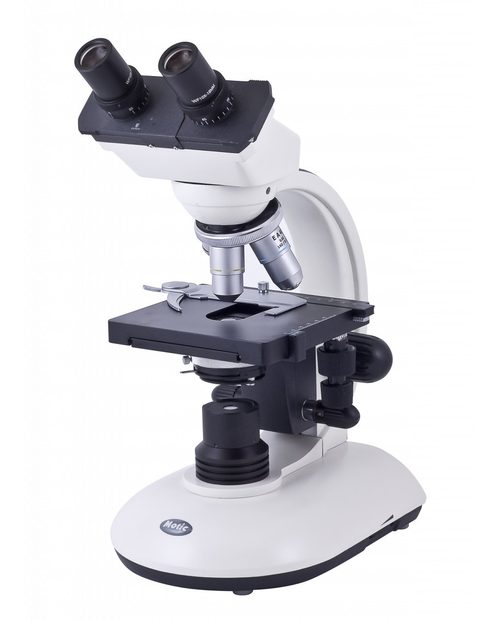

Motic 1820 LED Cordless Microscope

About this product

The Motic 1820 provides a unique, hassle-free microscopy solution. Illumination is provided by dimmable LEDs which offer bright white lighting with no heat; ideal for delicate specimens. The microscope also uses an internal rechargeable battery pack which means that it can be used cordless.

Eyepieces are located on a column with 45˚ inclination and 360˚ rotation for comfortable viewing. The interpupillary distance is adjustable between 55 and 75mm. The eyepiece has 18mm diameter and 10x magnification. Objective lenses are located on a revolving turret and have 4x, 10x and 40x magnification, providing an overall magnification of 40x, 100x or 400x. The stage measures 133 x 136mm and has a sample holder.

Supplied with a dust cover, charger (100-240V) and batteries.

Specification

Model: 1820 LED Cordless
Optical System: Finite optical system, 160mm
Observation tube: Binocular, sliding type
Interpupillary distance: 55-75mm
Inclination: 45˚ inclined, 360˚ rotating
Eyepiece(s): WF10x/18mm
Nosepiece: Reversed quadruple revolving nosepiece with click stops
Objective classification: EA Achromatic, DIN
Objective information: 4x/0.10, 10x/0.25, 40x/0.65/S
Objective mounting thread: W 4/5" x 1/36" (RMS standard)
Stage: Built-in low position coaxial mechanical stage with sample holder
Stage size: 133 x 136mm
Mechanical stage X & Y range: 77 x 31mm
Upper limit stop: Upper limit stop preset but adjustable
Condenser: Focusable 1.25 N.A. Abbe Condenser with iris diaphragm
Focus mechanism: Coarse and fine focusing system with tension adjustment
Z-axis movement: 11mm
Illumination: Cordless LED illumination with intensity control
Transformer: Internal
Power supply: 100-240V (CE)
Accessories included: Dust cover, charger and batteries
Dimensions: Length 215mm x Width 180mm x Height 400mm
Weight: 5kg
