Motic BA310 LED Microscope

Manufacturer: Motic Europe
  • Designed for the rigours of daily use in Universities, clinics and laboratories
  • Full Koehler LED illumination
  • 40x to 1000x magnification
  • Binocular and trinocular models available
Motic BA310 LED Microscope
Click to have a closer look
Select product
  • Motic BA310 LED Microscope Binocular Usually dispatched within 1-2 weeks
    £1,112.50
    #244807
  • Motic BA310 LED Microscope Trinocular Usually dispatched within 1-2 weeks
    £1,287.50
    #244808
Selected product: £1,287.50
About this product Specification Customer reviews Related products

About this product

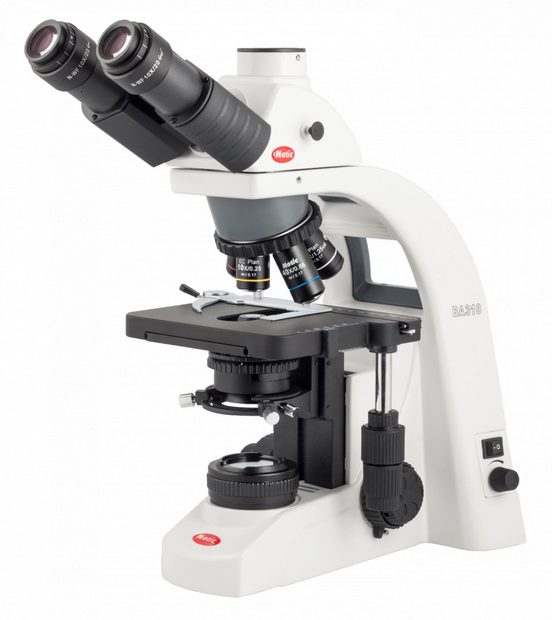

The Motic BA310 LED Microscope has been designed to withstand the rigours of daily routine work in Universities, clinics and laboratories. The BA310 uses Motic's Infinity Optical Concept as a basis for the upgraded EC Plan Achromatic Objectives and the Full Koehler Configuration provides maximum illumination for even the most demanding samples, with a 20mm Field of View. The 3W LED light source provides bright illumination without heat, sufficient power for upgrading the microscope, using additional accessories, with contrast methods such as Phase Control, Polarization, Darkfield or even multi-viewing devices. Objective lenses are located on a rotating tower and include 4x, 10x, 40x and 100x options, providing overall magnification of 40x, 100x, 400x and 1000x

Available in a binocular or trinocular model (the trinocular version includes a port that accepts a camera adapter (sold separately).

Key Features

* Hard coated stage that is safe and precise

* Eyepiece tubes at 30˚ angle for comfortable viewing

* Adjustable interpupillary distance

* Option of 20 / 80 light split in trinocular model to help produce brilliant digital images for sharing and teaching

* EC Plan Achromatic Objectives providing 4x to 100x magnification and improved image contrast

* 3W LED light source with full Koehler setup, provides increased lifetime and reduced heat to protect your specimens

* Can be integrated with Motic accessories to provide Phase Contrast, Darkfield and Polarization control

Specification

* Optical system: Colour corrected infinity optical system (CCIS)
* Observation tube: Bincular/trinocular head, 360˚ swiveling
* Interpupillary distance: 48-75mm
* Trinocular light split: 100:0/20:80 (optional 100:0/0:100)
* Inclination: 30˚ inclined, 360˚ rotating
* Eyepieces: N-WF10x/20mm with diopter adjustment, +/- 5 diopter
* Nosepiece: Reversed quintuple revolving nosepiece
* Objective classification: Infinity corrected CCIS EC plan achromatic DIN 45mm
* Objectives: 4x/0.10 (WD 15.9mm), 10x/0.25 (WD 17.4mm), 40x/0.65/S (WD 0.5mm), 100x/1.25/S-Oil (WD 0.15mm)
* Objective mounting thread: W 4/5" x 1/36" (RMS standard)
* Stage: Built-in low position coaxial mechanical stage with tension adjustment and two-sample holder
* Stage size: 175x 140mm
* Mechanical stage X&Y range: 76 x 50mm
* Upper limit stop: Upper limit stop preset but adjustable
* Condenser: Focusable Abbe condenser N.A. 1.25 with iris diaphragm and slot for contrast sliders
* Focus mechanism: Coaxial coarse and fine focusing system with tension adjustment
* Fine focus precision: 2µm minimum increment
* Z-axis movement: 20mm
* Filter holder: On top of the illuminator with fixing cap
* Illumination: 3W LED Koehler illumination with intensity control
* Transformer: Internal
* Power supply: 100-240V (CE)
* Accessories included: Immersion oil 5ml, power cord, cord hanger, dust cover, allen key, thumb screw and spare fuse
* Dimensions: 400 x 220 x 400mm
* Weight: 8.6kg (binocular), 8.8kg (trinocular)
