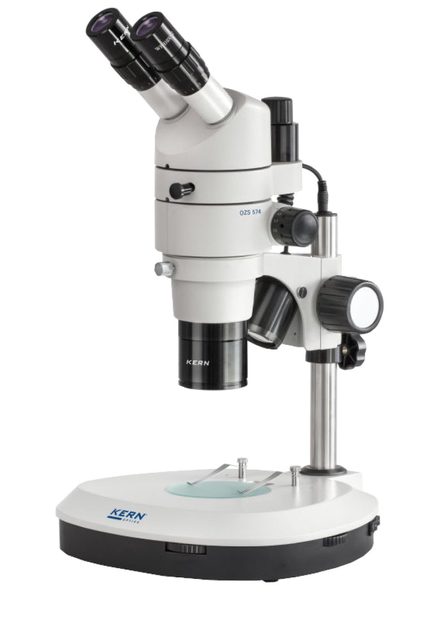

OZS-5 Parallel Optics Stereo Microscope

About this product

Please note, due to the weight and value of this item, our standard shipping rates may not apply. Please contact customer services at customer.services@nhbs.com to obtain a shipping quote.

The state-of-the-art OZS-5 stereo microscope uses the advanced parallel optics system to provide a first-class optical experience. Parallel optics are difficult and expensive to produce, but provide a far superior experience to the more commonly seen Greenough system. The advantages include a much wider range of magnification, high-contrast images with phenomenal colour translation and depth of field, as well as mitigating the irregular focus of cheaper Greenough stereo microscopes (known as the Keystone Effect) for fatigue-free use. For professional applications, or the very serious hobbyist, it is difficult to do better than a good quality parallel optic system.

The OZS-5 in particular excels with a wider-than-average magnification range of 8-80x, making it ideal for a huge range of applications in the natural sciences and beyond. The 30mm eye pieces allow an impressive amount of light through, producing a bright and crisp image. The 3w incident and transmitted and incident illumination provides and impressively bright image, fully adjustable and further customisable via external light sources such as a Dual Fibre LED Illuminator. The eyepieces are tilted 45° and feature dioptre compensation on both sides, allowing the user to tailor the viewing experience to their eyesight.

This is a trinocular microscope, coming with a photo tube for easy, high-quality microscopic photography. With an appropriate C-mount (available upon request) most microscope cameras are applicable, although Kern's own range is recommended.

Specification

Construction

• Dimensions (W×D×H): 305 mm x 300 mm x 540 mm
• Interpupillary distance (max): 76
• Interpupillary distance (min): 52
• Optical system: Parallel
• Rotation of tube 360°: yes
• Tube: Trinocular
• Tube angle: 45°

Illumination

• Illumination: 3W LED
• Incident Illumination: LED
• Transmitting illumination: LED

Power supply

• Input voltage: 110 - 220 V
• Mains adapter/adapter included: EURO

Optics

• Field of View: 2,200 cm
• Field width: HWF
• Zoom: 8 - 80x
• Objective: 0,800 x - 8 x
• Stand: Pillar

Packaging

• Dimensions packaging (W×D×H): 400 mm x 370 mm x 340 mm
• Gross weight: 7 kg
• Net weight: 5,734 kg
