About this product
The Motic RED 100 Series of microscopes is the ideal range for primary and secondary school pupils. They are fitted with high quality EA objectives that provide good colour rendition and contrast, good field flatness and easy to read magnification shells. They have a stable body that is comfortable to use and well positioned focusing controls to help students become familiar with the use of microscopes. The RED 100 series has cordless LED illumination that has many advantages over traditional halogen lighting: LED bulbs provide a bright, white, even light with no heat, so they are safe to touch. They have lower power consumption and a long bulb lifetime of over 10,000 hours. One charge of the battery will last 70 hours, making them really flexible in terms of desk positioning.
Features
RED100 Monocular Microscope
* Monocular head, 45° inclined, 360° rotating
* Widefield eyepiece WF10X / 18mm, with pointer
* Reversed triple revolving nosepiece
* Achromatic objectives: EA 4X, 10X, 40X S
* Coarse and fine focusing system with tension adjustment
* Gliding stage with built-in 0.65 N.A. condenser and one-touch sample clips
* Iris diaphragm
* Cordless LED illumination 20mA, 70mW with intensity control

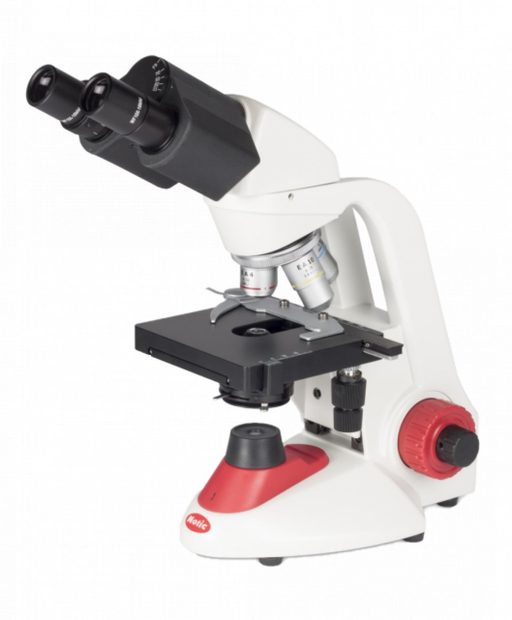

RED132 Binocular Microscope
* Binocular head, Siedentopf, 30° inclinded, 360° rotating
* Widefield eyepiece WF10X / 18mm, with pointer
* Reversed quadruple revolving nosepiece
* Achromatic objectives EA 4X, 10X, 40X S, 100X S-Oil
* Coaxial coarse and fine focusing system with tension adjustment
* Built-in low position coaxial mechanical stage
* Spiral mounted 1.25 N.A. Abbe condenser with iris diaphragm
* Cordless LED illumination 20mA, 3.5V, 70mW with intensity control
Specification
RED100 Monocular Microscope
Optical system: Finite optical system, 160mm
Observation Tube: Monocular
Inclination: 45° inclined, 360° rotating
Eyepieces: WF 10X / 18mm with pointer, lockable
Nosepiece: Reversed triple revolving nosepiece with click stops
Objective classification: EA Achromatic, DIN
Objectives: 4X / 0.10, 10X / 0.25, 40X / 0.65/S
Objective mounting thread: W 4/5" x 1/36' (RMS standard)
Stage: Gliding stage with "one-touch" sample clips
Stage size: 110mm x 110mm
Upper limit stop: Preset and adjustable
Condenser: Built in 0.65 N.A. condenser with iris diaphragm
Focus mechanism: Separated coarse and fine focusing system with tension adjustment
Fine focus precision: 2µm minimum increment
Z-axis movement: 13mm
Illumination: LED 20mA, 3.5V, 70mW with intensity control
Transformer: External
Power supply: Charger 100-240V or rechargeable batteries
Accessories included: Dust cover, charger and batteries
Length x width x height: 234 x 152 x 334mm
Weight: 4.7kg
RED132 Binocular Microscope
Optical system: Finite optical system, 160mm
Observation Tube: Binocular Siedentopf type head
Inclination: 30° inclined, 360° rotating
Interpupillary distance: 55 - 75mm
Diopter adjustment: On left tube, +/- 5 diopter
Eyepieces: WF 10X / 18mm with pointer, lockable
Nosepiece: Reversed quadruple revolving nosepiece with click stops
Objective classification: EA Achromatic, DIN
Objectives: 4X / 0.10, 10X / 0.25, 40X / 0.65/S, 100X / 1.25/S-Oil
Objective mounting thread: W 4/5" x 1/36' (RMS standard)
Stage: Built-in low position coaxial mechanical stage with sample holder
Stage size: 120mm x 120mm
Mechanical stage X&Y range: 77 x 25mm
Upper limit stop: Preset and adjustable
Condenser: Spiral mounted 1.25 N.A. Abbe condenser with iris diaphragm
Focus mechanism: Coaxial coarse and fine focusing system
Fine focus precision: 2µm minimum increment
Z-axis movement: 7mm
Filter: Built-in frosted glass
Illumination: LED 20mA, 3.5V, 70mW with intensity control
Transformer: External
Power supply: Charger 100-240V or rechargeable batteries
Accessories included: Dust cover, immersion oil (5ml), charger and batteries
Length x width x height: 234 x 152 x 334mm
Weight: 4.7kg
